JUYI 48V BLDC Motor Controller JYQD-YL01D With Fast Reverse Brake Function

Product Categories
Shanghai Juyi Electronic Technology Development Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

JUYI 48V BLDC Motor Controller JYQD-YL01D With Fast Reverse Brake Function

  • 1
  • 2
  • 3

Brand Name : JUYI

Model Number : JYQD-YL01D

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T,Paypal

Supply Ability : 1000sets/day

Delivery Time : 5-8 working days

Packaging Details : PE bag+ carton

Customized Service : Yes

Working Voltage : 12V/24V/48V DC

Phase Number : 3

Speed Regulation : 0-5V/Duty cycle

Working Current : 15A

Suitable Motor : sensor motor

Working Mode : Hall

Overtemperature Protection : Yes

Alarm Output : Yes

Speed Display Range : 0-99999/ RPM

Contact Now

JUYI 48V BLDC Motor Controller JYQD-YL01D with fast reverse brake function

JUYI 48V BLDC Motor Controller JYQD-YL01D With Fast Reverse Brake Function

Model
JYQD-YL01D
(8559)
JYQD-YL01D
(457E)
JYQD-YL01D
(99F2)
JYQD-YL01D
(C737)
Working
Temperature(℃)
-20—85
-20—85
-20—85
-20—85
Working Voltage(V)
12V-48V
12V-48V
12V-48V
12V-48V
Max.operating
current(A)
15A
15A
15A
15A
PWM speed control
PWM frequency(1-
20KHZ)
Duty cycle 0-
100%
Duty cycle 0-
100%
Duty cycle 0-
100%
Duty cycle 0-
100%
Analog voltage
speed regulation(V)
0-5V
0-2.5V
0-5V
0-2.5V
Liner brake (V)
 0-5V
0-2.5V
 0-5V
0-2.5V
Speed pluse
signal output
√
√
√
√
Reversing function
√
√
√
√
Safe start function
X
X
√
√

Application area
Remote control electric vehicle, two -wheel balance vehicle, remote control wheelchair, medical machine,amusement vehicle, robot, etc.
Application notes:
1. Confirm that the voltage and power parameters of the motor not exceed the range of the driver board as specified.
2. This driver board is used for 3-phase brushless sensorless motor, but not suit for all 3-phase brushless sensorless motors directly.The hall angle should be 120 degrees.
3. The brake function of JYQD-YL01D is reactive brake.The motor turns the brake to produce energy for recycling.Please don’t use the brake function when testing with a regulated power to avoid damage driver.
4.The 5V output port on the driver board,can be controled by the single-chip cumputer with the current lower than 100MA.
5.Pleasse pay attention to the insulation and heat dissipation about the driver board.
6.Safety start function:If the speed regulation is not in right place or the speed rehulation is invalid after power-on, please make the speed regulation or brake reset can be ok.

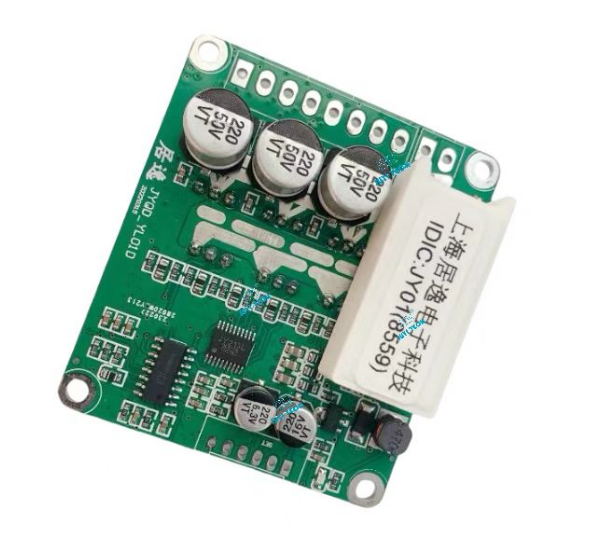

Driver Board diagram
JUYI 48V BLDC Motor Controller JYQD-YL01D With Fast Reverse Brake Function
Wiring Diagram
JUYI 48V BLDC Motor Controller JYQD-YL01D With Fast Reverse Brake Function
1. Control port (right) 2.54 hole spacing
5V-control board internal output 5V.
EL - brake control port, reactive linear brake, with energy recovery function, analog voltage brake 0-5V. In the case of constant speed +, the higher the brake voltage, the greater the braking force 0-100%.
M-Speed signal output port, pulse frequency is proportional to motor speed (pulse ratio is related to motor)
Z / F-Positive and reverse control port. Hard change, 5V or suspended to one direction,GND to the other direction.
VR - speed control port, analog voltage speed regulation 0V-5V(0-2.5V) speed regulation, linear speed regulation from low to high. External PWM speed regulation needs to be shared with the drive board.
GND - control board.
2. Power port (left) 3.96 hole spacing
P + - Power input cathode 12V-48V (support lithium)
P- - Power supply input negative electrode
MC / W - - One of the motor phase line
MB / V - - One of the motor phase line
MA / U - - One of the motor phase line
GND - - Motor Hall negative electrode
HA- - motor Hall signal one
HB - - motor Hall signal one
HC - - Motor Hall signal is one
5V - - Motor Hall positive pole
3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
4. Pay attention to the heat dissipation if continue working with the max. Current.
Dimensional Drawing
